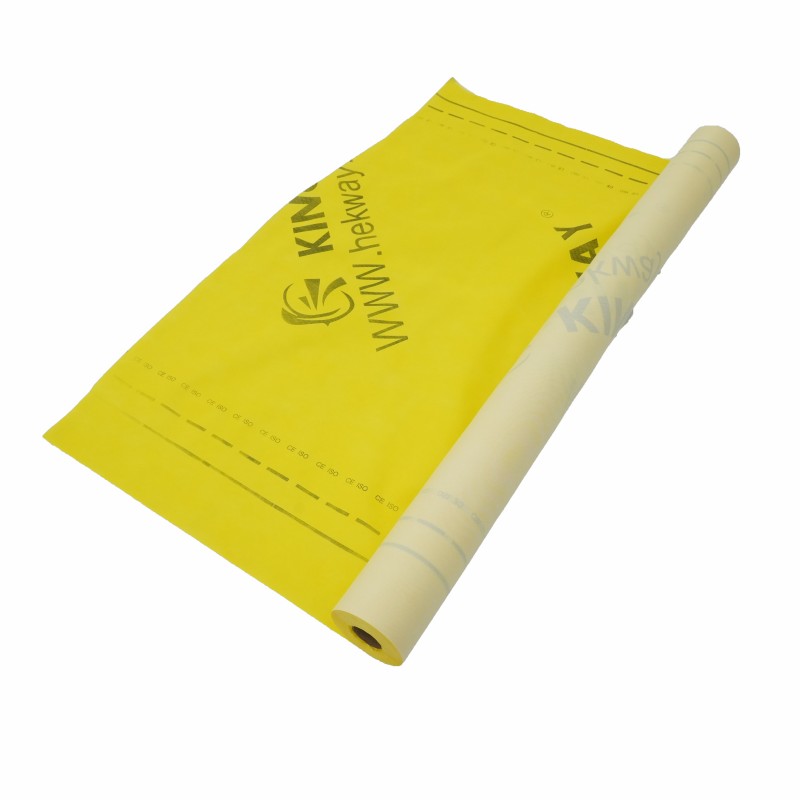

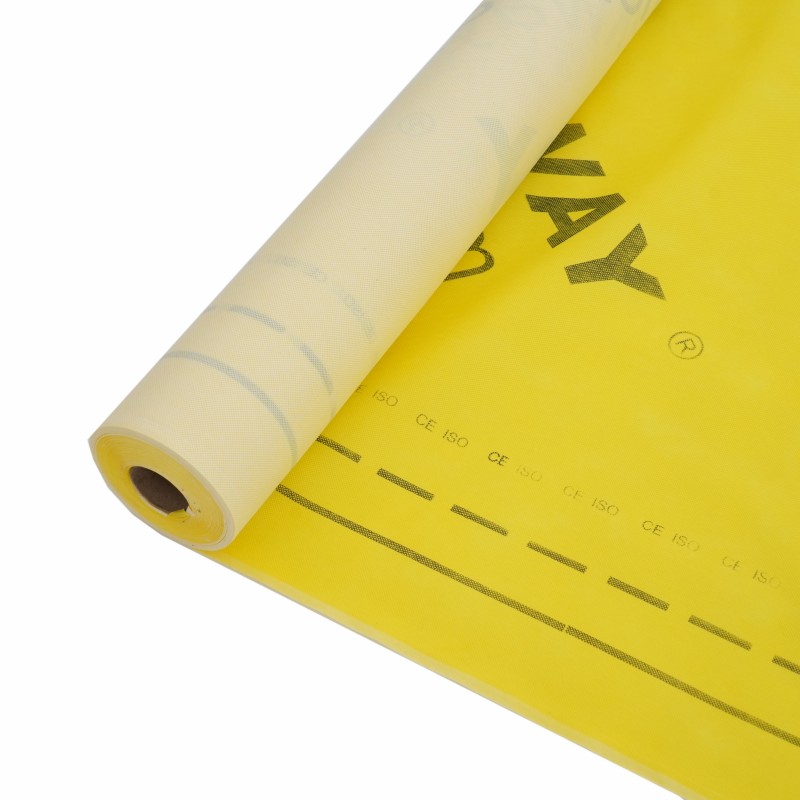

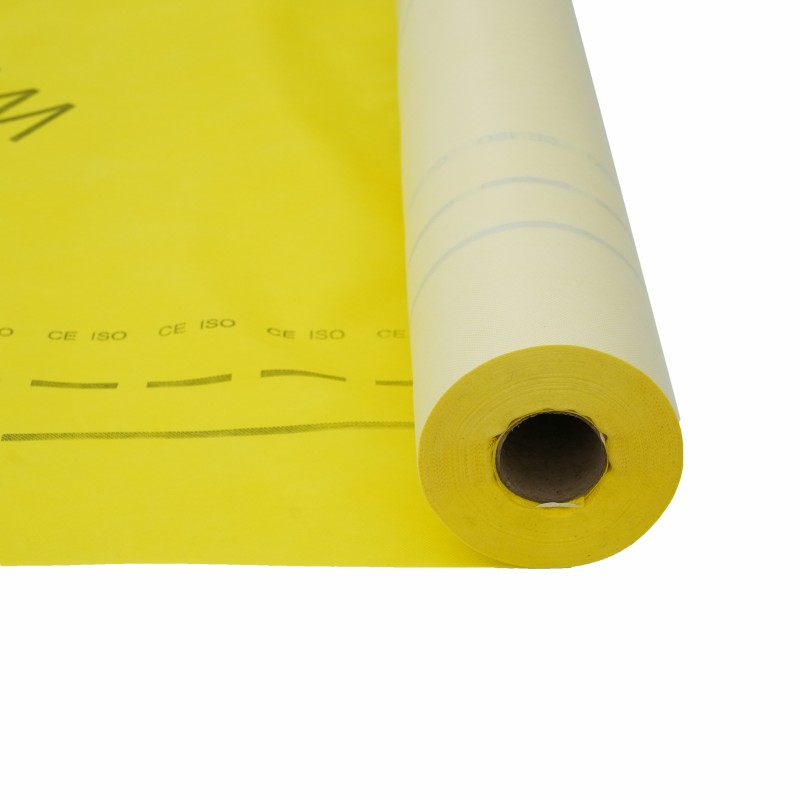

180gsm Provides a consistent layer of protection Vapor Barrier & Waterproof Membrane Adhesive backing board

Introduction

Product General Information:

Place of Origin:

Jiangsu, China

Brand Name:

Kingway

Model Number:

LBUSA1800

Certification:



Water Tightness:

W1

Width:

1m;1.5m;customized

Length:

50m;customized

Color:

White,Grey,Green, Red, Black or Customized

Commercial Terms of Products:

Minimum Order Quantity:

10000m2

Packaging Details:

PE bags

Delivery Time:

30-45days

Payment Terms:

30% T/T ,70% After shipment

Description:

Kingway Waterproof Membrane is a flexible, watertight membrane and vapor barrier for use in watertight applications in conjunction with tile on floors and walls. Waterproof Membrane ensures superior adhesion of tiles and provides a simple watertight solution for areas with high levels of water and moisture. Waterproof Membrane is a three layer membrane comprised of a polyethylene core and outer layers of polypropylene and is available as 1M wide rolls, seam tape, inside and outside corners, pipe collars and mixing value covers. Waterproof Membrane is also available pre-applied to both  Waterproof Backer Board and Pre-Sloped Shower Pans, providing a labor saving option for waterproofing of shower walls and floors.

Applications:

Kingway Waterproof Membrane is a flexible, watertight membrane and vapor barrier for use in watertight applications in conjunction with tile on floors and walls. Waterproof Membrane ensures superior adhesion of tiles and provides a simple watertight solution for areas with high levels of water and moisture. Waterproof Membrane is a three layer membrane comprised of a polyethylene core and outer layers of polypropylene and is available as 1M wide rolls, seam tape, inside and outside corners, pipe collars and mixing value covers. Waterproof Membrane is also available pre-applied to both  Waterproof Backer Board and Pre-Sloped Shower Pans, providing a labor saving option for waterproofing of shower walls and floors.

Specifications:

Roll Width

1m/1.5m/customize

Roll Length

50m/customize

Weight

180gsm



Tensile Strength



Longitudinal: 280N/50mm(±30)

Transverse:200N/50mm(±30)



Elongation



Longitudinal:80%(±30%)

Transverse: 90%(±30%)



Resistance to tearing

Longitudinal: 150N/50mm(±30)

Transverse: 180N/50mm(±30)

Water Resistance

W1

Reaction to fire

Class E

Competitive Advantage:

* Manufactured to provide a consistent layer of protection throughout your wet area

* High nail tear strength

* Density tolerance - only 5% for basic models;

* UV resistance - up to 180 days;

* Easy installation - optional integral self-adhesive tape;

* Specialized products (conventional, reflective,)

* Load bearing membrane and vapor barrier, exceeds TCNA requirements for steam shower applications

* High water resistance
