Place of Origin: |
Jiangsu China |
Brand Name: |
Kingway |
Model Number: |
UB100 |
Certification: |
CE |
Weight |
100g |
Roll Length: |
50m/Roll or Customized |
Roll Width: |
1.5m or Customized |
Specification: |
1.5*50m |
Minimum Order Quantity: |
10000 square meters |
Packaging Details: |
Plastic / Thermoplastic Packaging |
Delivery Time: |
30-45days |
Payment Terms: |
30%T/T,70% after shipment |
Supply Ability: |
1000000 Square |

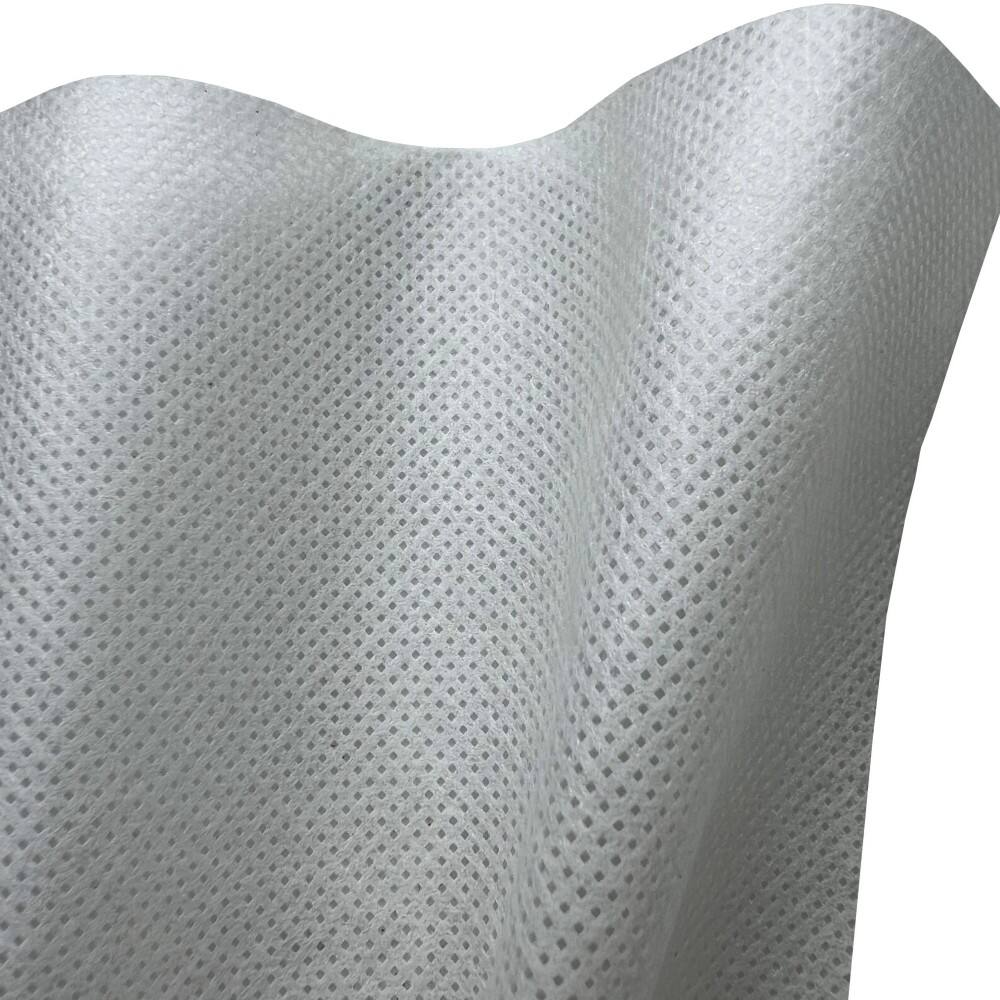

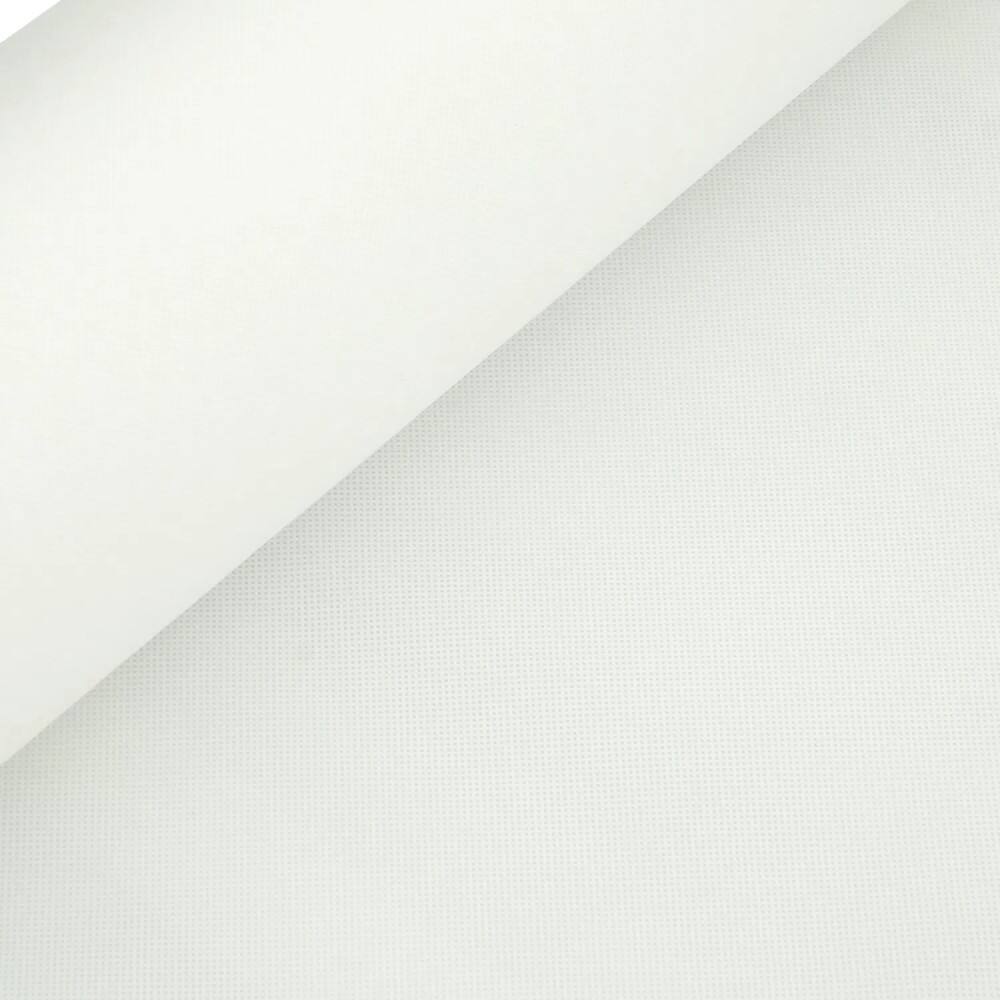

Vapour Control Membrane is a pitched roofunderlay enables airtightness and vapour control in roof and wall constructions. It has an optimum fixed vapour resistance level of Sd 10m. This allows for an ideal level of vapour control, by preventing diffusion of internal vapour into the building envelope and prevents a build-up of condensation within the building envelope, which can cause mildew growth and structural damage. The CE sign in accordance with DIN 13984 gives the necessary assurance for the quality of the product.

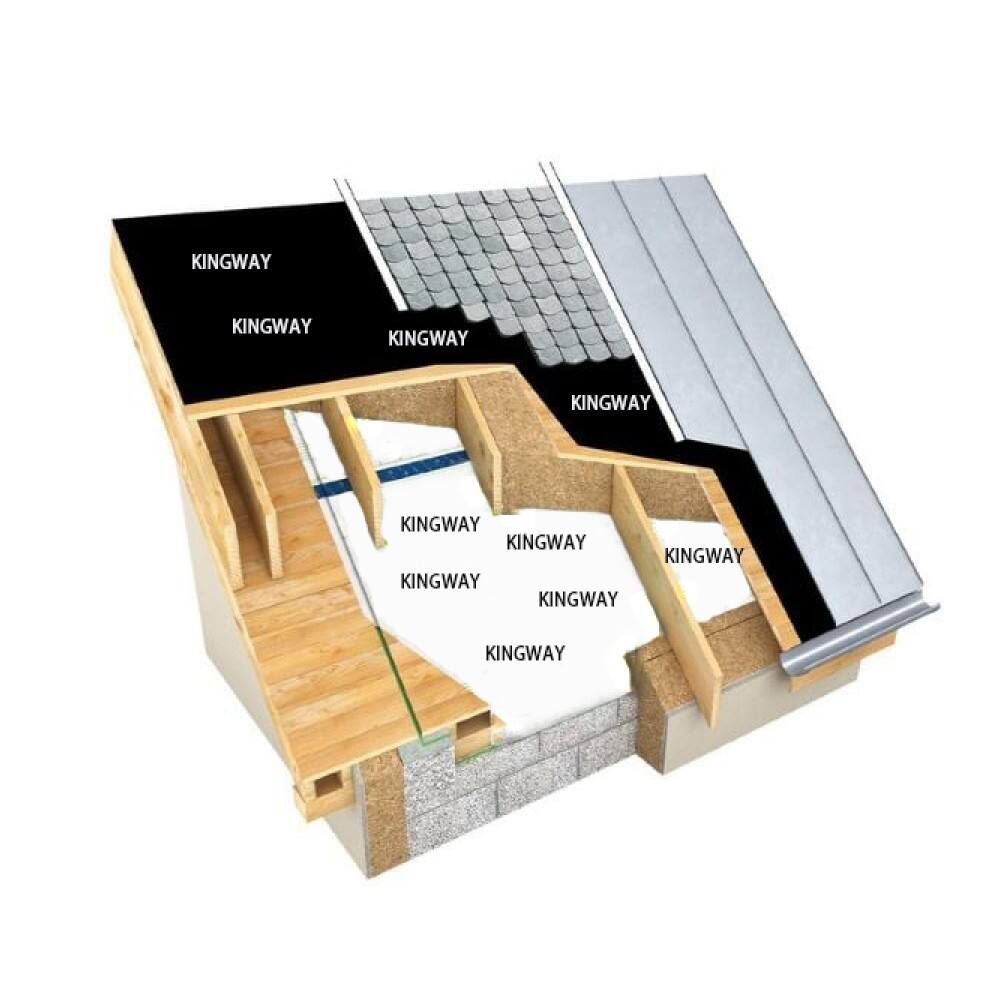

Interior installation to create an airtight envelope
All construction types.
Ceilings, walls, floors and loft spaces.
| Project | UB100 |
| Colour | White or Others |
| Resistance to Fire | Class E |
| Material | Airtight Membrane |
| System | Airtight |
| Elongation Longitudinal(%) | 150 |
| Elongation Transverse(%) | 140 |
| Tear Resistance Longitudinal(N/50mm) | 135 |
| Tear Resistance Transverse(N/50mm) | 115 |
| Tensile Strength Longitudinal(N/50mm) | 100 |
| Tensile Strength | 150 |
| Transverse(N/50mm) | |
| Water Vapour Resistance - Sd Value (m) | 10m, Fixed |
| Water Penetration Resistance | Class W1 |
| Application Area | Ceiling, Floors, Internal Wall, Loft Space |
Lightweight, flexible and moisture resistant.
Improves airtightness and thermal performance.
Increases building energy efficiency.
Water vapour transmission fixed Sd value 10m.
Reduces draughts and heat loss.
130gsm aluminized reflective, UV-resistant, highly permeable water-vapor-permeable waterproof and breathable membrane
Kingway heat insulation material double sided aluminum foil woven fabric
Kingway 1.5m*50m/roll 80gsm heat insulation aluminum foil backed woven fabric
Customizable Vapour barrier 1.5*50m is a lightweight, reinforced, polyethylene vapour control layer for use within roof and wall constructions
