Place of Origin: |
Jiangsu China |
Brand Name: |
Kingway |
Model Number: |
UB80FR |
Certification: |
CE |
Weight |
80g |
Roll Length: |
50m/Roll or Customized |
Roll Width: |
1.5m or Customized |
Specification: |
1.5*50m |
Performance: |
Flame retardant |
Minimum Order Quantity: |
10000 square meters |
Packaging Details: |
Plastic / Thermoplastic Packaging |
Delivery Time: |
30-45days |
Payment Terms: |
30%T/T,70% after shipment |
Supply Ability: |
1000000 Square |
Vapour Control Membrane is a pitched roofunderlay enables airtightness and vapour control in roof and wall constructions. It has an optimum fixed vapour resistance level of Sd 10m. This allows for an ideal level of vapour control, by preventing diffusion of internal vapour into the building envelope and prevents a build-up of condensation within the building envelope, which can cause mildew growth and structural damage. The CE sign in accordance with DIN 13984 gives the necessary assurance for the quality of the product.
Suitable for roofs, walls, ceilings, and floors
Suitable for enclosed or open building structures, such as pitched roofs, flat roofs, or green roofs.

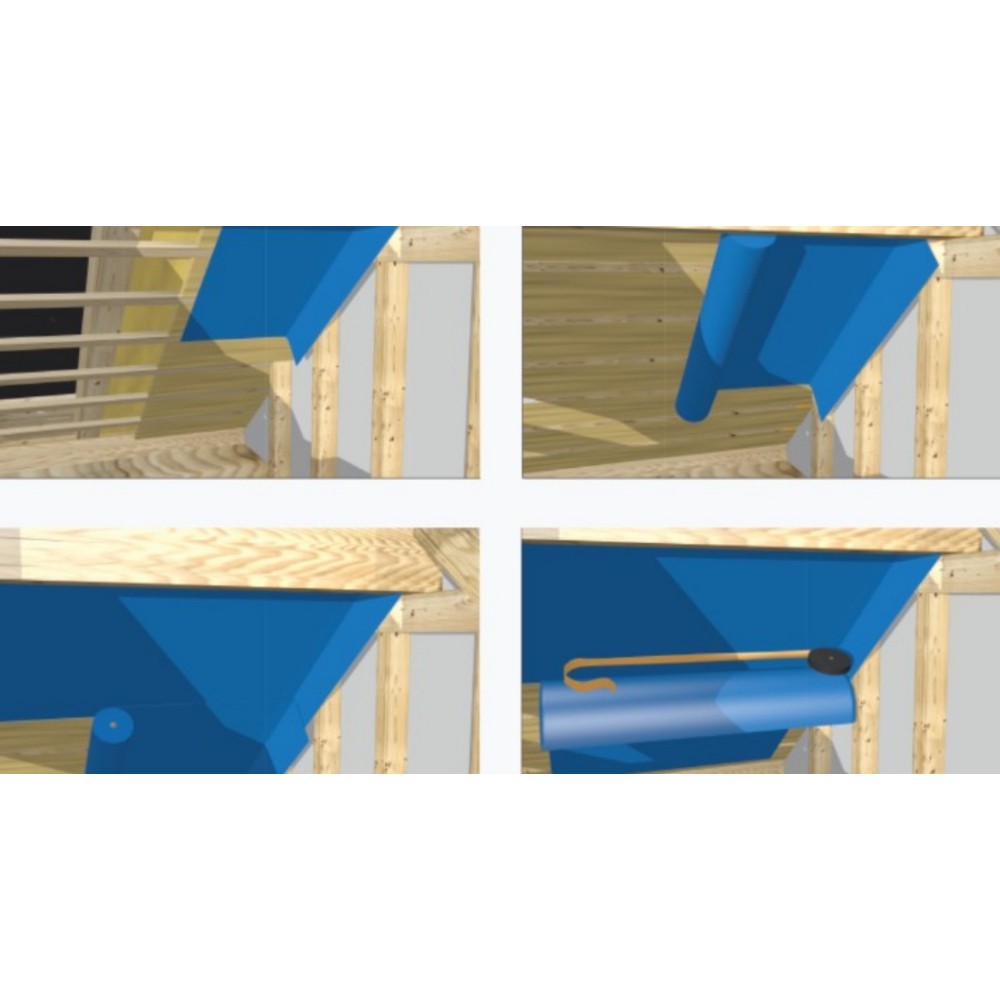

Suitable for indoor installation to form an airtight envelope for attic spaces.
| Project | UB80FR |
| Colour | White or Others |
| Resistance to Fire | Flame retardant |
| Material | Airtight Membrane |
| System | Airtight |
| Elongation Longitudinal(%) | 120 |
| Elongation Transverse(%) | 110 |
| Tear Resistance Longitudinal(N/50mm) | 110 |
| Tear Resistance Transverse(N/50mm) | 95 |
| Tensile Strength Longitudinal(N/50mm) | 80 |
| Tensile Strength | 120 |
| Transverse(N/50mm) | |
| Water Vapour Resistance - Sd Value (m) | 10m, Fixed |
| Water Penetration Resistance | Class W1 |
| Application Area | Ceiling, Floors, Internal Wall, Loft Space |
UV/Temperature Resistance: 3 months
Material: Polyethylene copolymer with a robust PP outer shell
Waterproof, withstands 2.5 meters of water column pressure.
Effectively prevents mold growth and structural damage as diffusion resistance varies with humidity.
Easier to handle: Compatible with insulation installed between rafters or wall framing, as well as exterior wall insulation.
